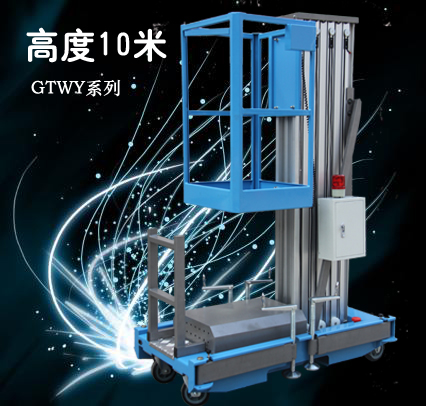

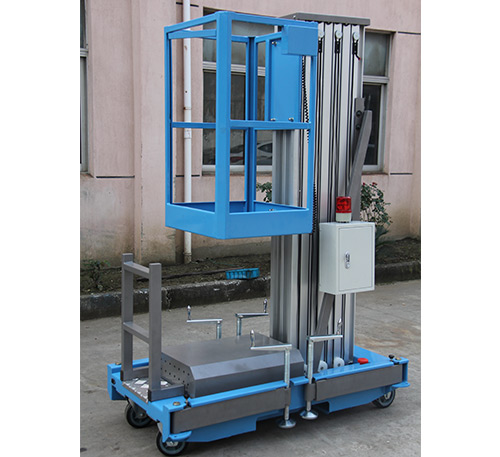

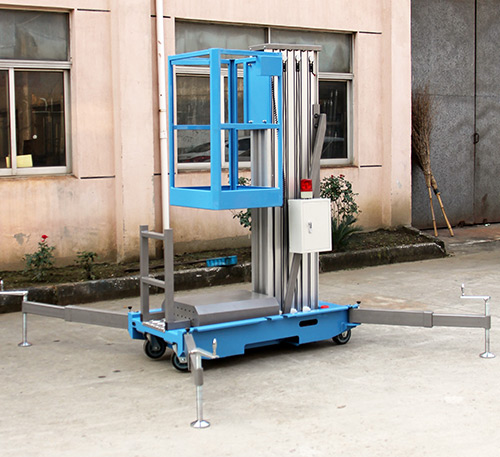

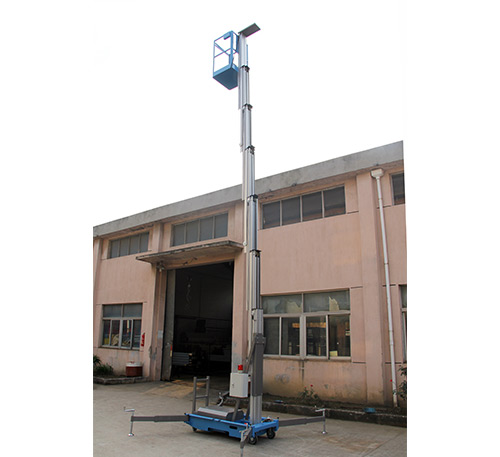

單柱式鋁合金升降機Single Mast aluminum aerial Work Platform

      型號 Moder   GTWY10-100

安全載荷/Pated Load ...................................................125kg

工作高度/Working Height ....................................................12m

平臺高度/Platform Height ...................................................10m

 整機長度/Overall length..............................................................1.42m

整機寬度/Overall width...............................................................0.85m

整機高度/Overdll height...............................................................2.1m

工作平臺尺寸/Platform size.................................................0.60*0.55m

離地間隙/Ground clearance.......................................................0.08m

軸距/Wheel bas.....................................................................................1.24m

支撐面積Maximum support area..........................................................2.2*1.85m

 起升電機/Lifting power   AC...................................................................220VAC/0.75kw

                    DC...................................................................24VDC/0.8kw

 蓄電池/Battery.................................24v/80Ah

充電器/Charger.................................24v/50A

上升速度/Lifting speed ................................65sec

下降速度/Descending speed ...........................可調(diào)

輪胎/Tyre  后胎/Rear tyre.................................φ150*50mm

          前胎/Front tyre................................φ150*50mm

 整機重量/Weight  GTWY10-100................340kg

標準配置 /  Standard configuration

-調(diào)平支腿 / Chassis wiht level gauge          -緊急停止按鈕/Emerhgency stop button

-雙控制器操作/Dual activated up/down switch  -緊急下降拉鈕/Emerhgency Descending button

-水平指示器/Level gauge                   -超載限制/Over load protection
