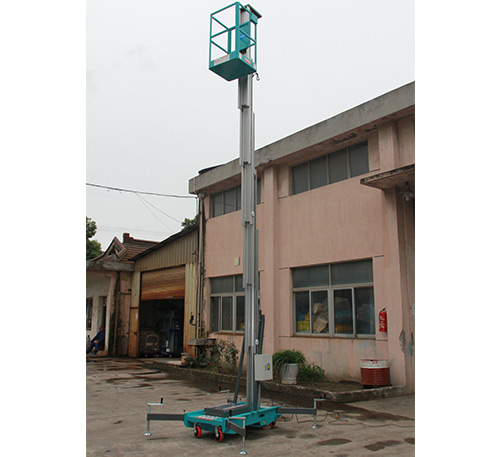

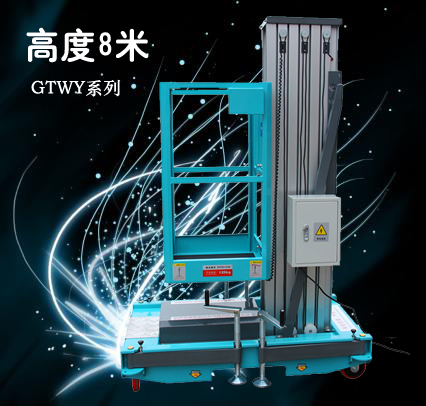

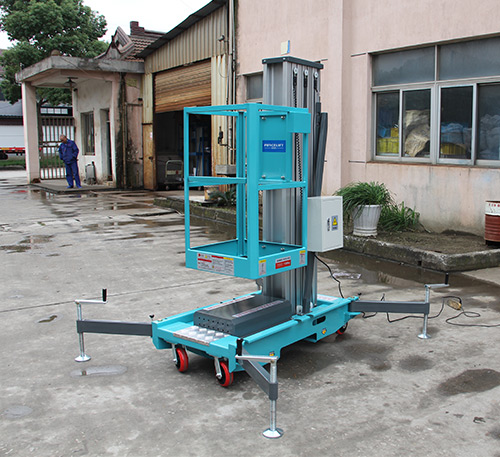

單柱式鋁合金升降機Single Mast aluminum aerial Work Platform

      型號 Moder   GTWY8-100

安全載荷/Pated Load ...................................................125kg

工作高度/Working Height ....................................................10m

平臺高度/Platform Height ...................................................8m

 整機長度/Overall length..............................................................1.32m

整機寬度/Overall width...............................................................0.8m

整機高度/Overdll height...............................................................1.98m

工作平臺尺寸/Platform size.................................................0.60*0.55m

離地間隙/Ground clearance.......................................................0.08m

軸距/Wheel bas.....................................................................................1.17m

支撐面積Maximum support area..........................................................1.95*1.7m

 起升電機/Lifting power   AC...................................................................220VAC/0.75kw

                     DC...................................................................24VDC/0.8kw

 蓄電池/Battery.................................24v/80Ah

充電器/Charger.................................24v/50A

上升速度/Lifting speed ................................58sec

下降速度/Descending speed ............................可調

輪胎/Tyre 后胎/Rear tyre.................................φ150*50mm

         前胎/Front tyre................................φ150*50mm

 整機重量/Weight  GTWY8-100................300kg

標準配置 /  Standard configuration

-調平支腿 / Chassis wiht level gauge   -緊急停止按鈕/Emerhgency stop button

-雙控制器操作/Dual activated up/down switch  -緊急下降拉鈕/Emerhgency Descending button

-水平指示器/Level gauge   -超載限制/Over load protection
