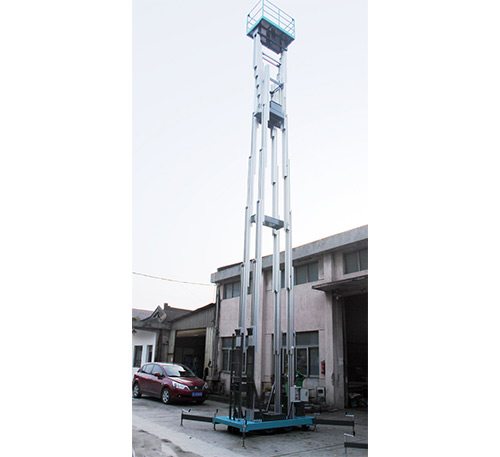

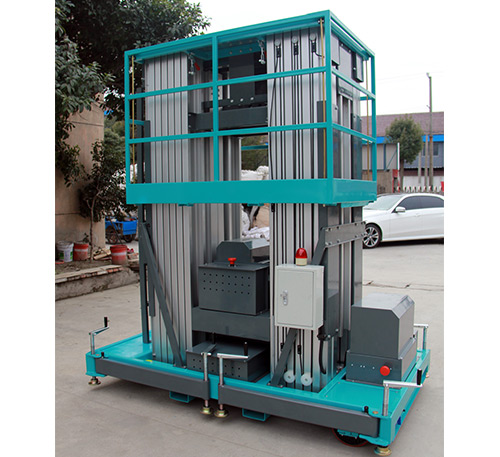

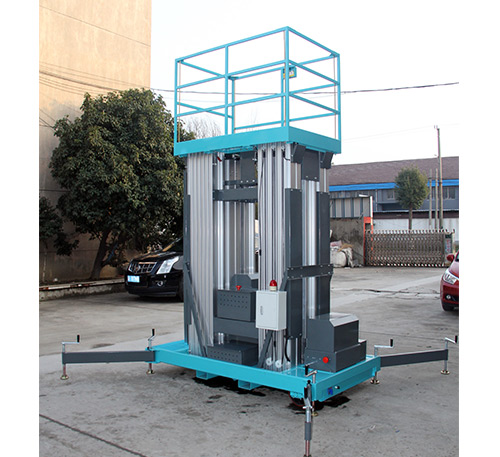

六桅式鋁合金升降機Multi Mast aluminum aerial Work Platform

      型號 Moder   GTWY16-4200S

安全載荷/Pated Load ..................................................150kg

工作高度/Working Height ....................................................18m

平臺高度/Platform Height ..................................................16m

 整機長度/Overall length..............................................................2.28m

整機寬度/Overall width...............................................................1.35m

整機高度/Overdll height...............................................................2.32m

工作平臺尺寸/Platform size.................................................1.45*0.90m

離地間隙/Ground clearance.......................................................0.1m

軸距/Wheel bas.....................................................................................1.35m

支撐面積Maximum support area..........................................................3.25*2.95m

起升電機/Lifting power AC...................................................................220VAC/1.5/1.1kw

                     DC...................................................................24VDC/2.2/0.8kw

 蓄電池/Battery.................................24v/120Ah

充電器/Charger.................................24v/50A

上升速度/Lifting speed ...............................127/102sec

下降速度/Descending speed ............................可調

輪胎/Tyre 后胎/Rear tyre.................................φ250*50mm

         前胎/Front tyre................................φ200*50mm

 整機重量/Weight  GTWY16-4200S...............1680kg

標準配置 /  Standard configuration

-調平支腿 / Chassis wiht level gauge          -緊急停止按鈕/Emerhgency stop button

-雙控制器操作/Dual activated up/down switch -緊急下降拉鈕/Emerhgency Descending button

-水平指示器/Level gauge                   -超載限制/Over load protection

六桅式鋁合金升降機Multi Mast aluminum aerial Work Platform

      型號 Moder   GTWY18-4200S

安全載荷/Pated Load ..................................................150kg

工作高度/Working Height ....................................................20m

平臺高度/Platform Height ..................................................18m

 整機長度/Overall length..............................................................2.28m

整機寬度/Overall width...............................................................1.35m

整機高度/Overdll height...............................................................2.52m

工作平臺尺寸/Platform size.................................................1.45*0.90m

離地間隙/Ground clearance.......................................................0.1m

軸距/Wheel bas.....................................................................................1.35m

支撐面積Maximum support area..........................................................3.25*2.95m

起升電機/Lifting power AC...................................................................220VAC/1.5/1.1kw

                     DC...................................................................24VDC/2.2/0.8kw

 蓄電池/Battery.................................24v/120Ah

充電器/Charger.................................24v/50A

上升速度/Lifting speed ...............................132/104sec

下降速度/Descending speed ............................可調

輪胎/Tyre 后胎/Rear tyre.................................φ250*50mm

         前胎/Front tyre................................φ200*50mm

 整機重量/Weight  GTWY18-4200S...............1790kg

標準配置 /  Standard configuration

-調平支腿 / Chassis wiht level gauge          -緊急停止按鈕/Emerhgency stop button

-雙控制器操作/Dual activated up/down switch -緊急下降拉鈕/Emerhgency Descending button

-水平指示器/Level gauge                   -超載限制/Over load protection
