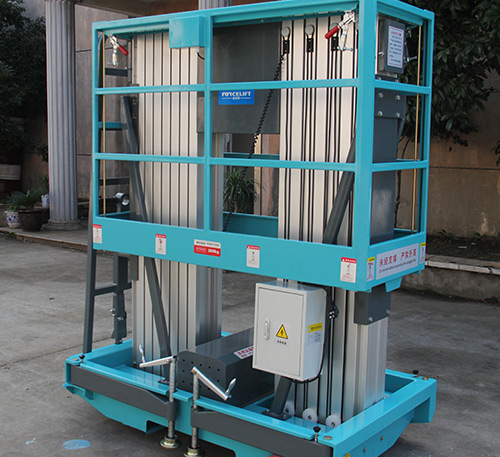

雙桅式鋁合金升降機Double Mast aluminum aerial Work Platform

        型號 Moder   GTWY10-200S

 安全載荷/Pated Load ...................................................200kg

工作高度/Working Height ....................................................12m

平臺高度/Platform Height ..................................................10m

 整機長度/Overall length..............................................................1.58m

整機寬度/Overall width...............................................................0.95m

整機高度/Overdll height...............................................................1.98m

工作平臺尺寸/Platform size.................................................1.38*0.62m

離地間隙/Ground clearance.......................................................0.08m

軸距/Wheel bas.....................................................................................1.44m

支撐面積Maximum support area..........................................................2.35*2.05m

 起升電機/Lifting power  AC...................................................................220VAC/1.1kw

                     DC...................................................................24VDC/0.8kw

 蓄電池/Battery.................................24v/100Ah

充電器/Charger.................................24v/50A

上升速度/Lifting speed ................................102sec

下降速度/Descending speed ............................可調(diào)

輪胎/Tyre 后胎/Rear tyre.................................φ150*50mm

         前胎/Front tyre................................φ150*50mm

 整機重量/Weight  GTWY10-200S...............610kg

標(biāo)準(zhǔn)配置 /  Standard configuration

-調(diào)平支腿 / Chassis wiht level gauge          -緊急停止按鈕/Emerhgency stop button

-雙控制器操作/Dual activated up/down switch -緊急下降拉鈕/Emerhgency Descending button

-水平指示器/Level gauge                   -超載限制/Over load protection
